Pressure

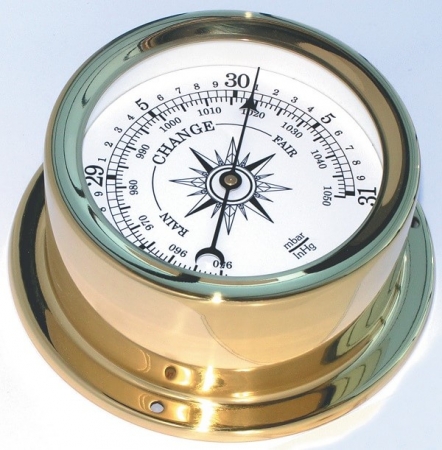

An aneroid barometer. Image imgkid.

An aneroid barometer. Image imgkid.

ZIMSEC O Level Geography Notes: Pressure.

-is the pressure exerted by the weight of air in the atmosphere of Earth. It is measured in millibars. It is measured using an instrument known as a barometer. There are two different types of barometers: the mercury and aneroid barometers.

Mercury barometer

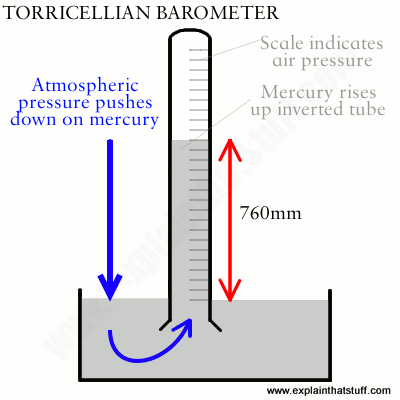

A diagram showing how a Mercury barometer works.

A diagram showing how a Mercury barometer works.

  • It is very large, the glass tube is typically almost 1m in height.
  • It gives very accurate readings.
  • It has a bulb that is dipped in a container of mercury.
  • When the atmospheric pressure rises, it exerts force its force on the mercury which becomes compressed.
  • The mercury is pushed up the bulb to a height of 760 mm.
  • When pressure decreases the mercury contracts and moves down the thermometer.

Advantages

  • It gives accurate readings.
  • It is simple to construct and maintain.

Disadvantages

  • It is very large and cumbersome.
  • Mercury must be at least a meter long.
  • They break easily.
  • They cannot produce a continuous reading, so readings have to be taken regularly.
  • Mercury is a dangerous poison.

Aneroid Barometer

A diagram showing an Aneroid barometer.

A diagram showing an Aneroid barometer.

  • These are portable and can be safely used at homes and schools as they do not contain mercury.
  • They are made up of an air-tight metal box.
  • If pressure increases the box is squashed inwards.
  • Conversely if pressure decreases the box expands outwards.
  • A complex series of springs is attached to the box.
  • The other end of the spring is connected to a point which has a calibrated dial on the other end to record the various pressure readings.
  • The spring amplifies the expansions and contractions of the box in accordance to atmospheric pressure.

Advantages

  • It is portable.
  • It can be safely used in the home or at school since it does not rely on mercury which is poisonous.
  • It is easier to read since it comes with a calibrated dial.
  • Can make continuous readings.
  • Can be attached to a computer to make automated continuous readings.

Disadvantages

  • It is less accurate.
  • Requires great skill and expertise to make.

Go to Geography Notes Home to access more topics.
